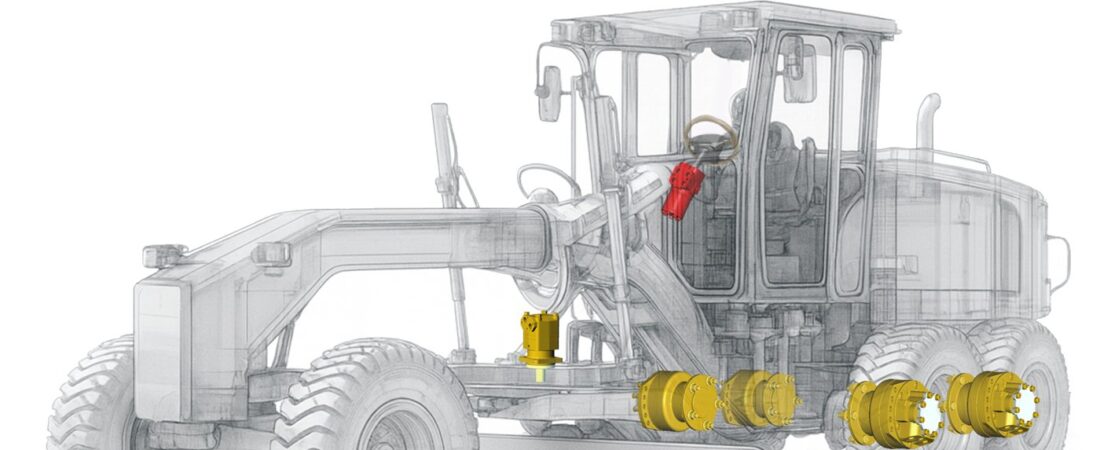

![Motor Grader: [TMS05] & [BM4] & [BDASS]](https://thoth-hydraulics.com/wp-content/uploads/2026/07/case-22-motor-grader-tms05-wheel-bm4-bdas5-1100x450.jpg)
Product Selection · Application Guide
Blade precision starts with traction and steering — how the TMS05 wheel motor, BM4 orbital motor, and BDAS5 steering unit divide the work on a motor grader.
Grading tolerance is measured in millimetres over hundreds of metres. That precision starts below the blade: traction must not slip, and steering must not wander, or the surface records every fault.

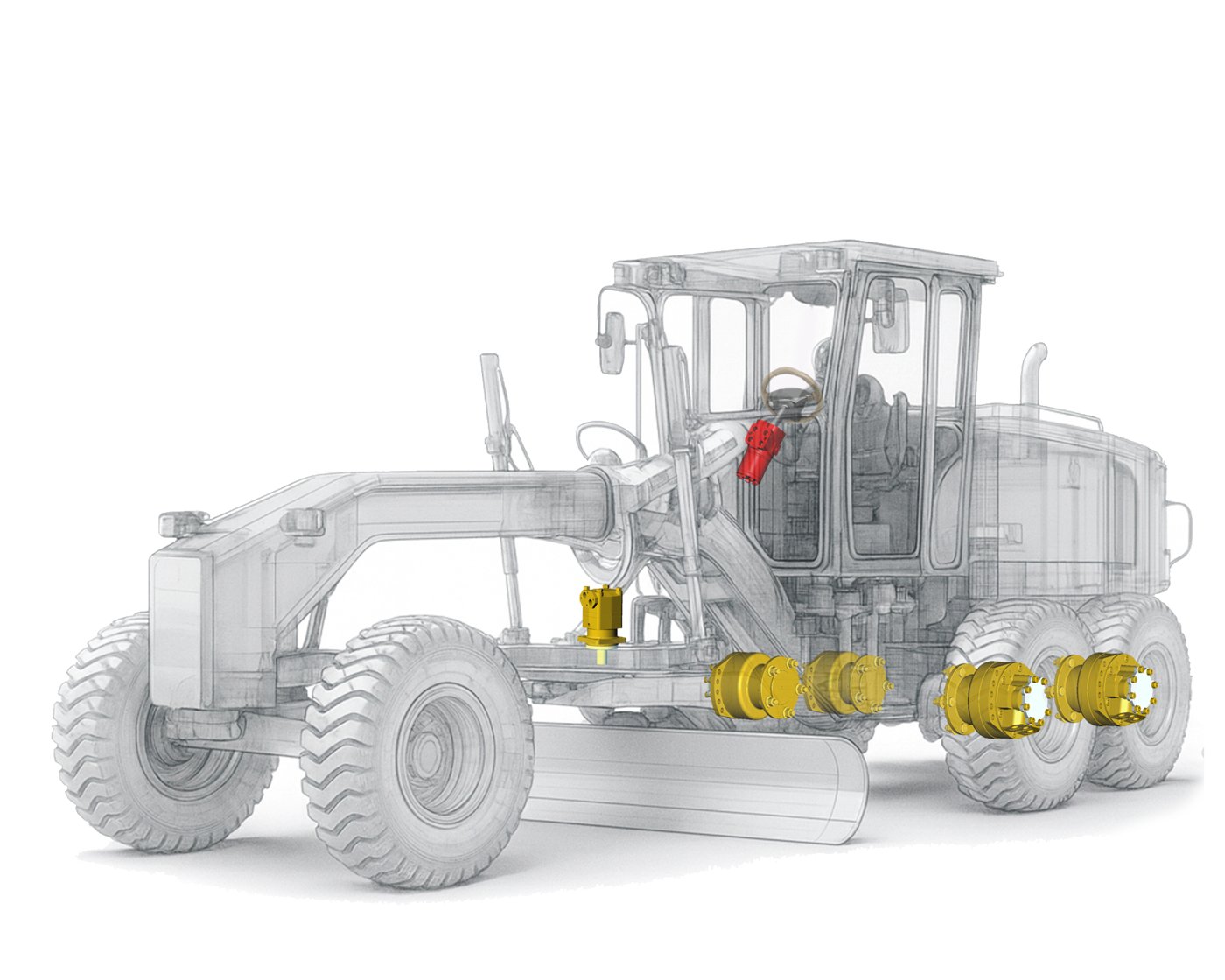

Motor roles in this machine
- TMS05 — front wheel assist (AWD): Wheel-type radial piston motors add front traction on soft ground, keeping the blade loaded evenly. TMS05 reference →
- BM4 — auxiliary drive: Heavy-duty orbital motor for circle turn and auxiliary functions, compact enough for the grader frame. BM4 reference →
- BDAS5 — steering unit: Full-hydraulic steering with proportional response holds a straight grading line pass after pass. BDASS reference →
For sizing details or datasheets, contact our engineers.
